SCSI Connectors and SCSI Cable information - The Connectors: IDC50 50 Pin Header IDC50 Female IDC50 Male IDC 50 pin female, mates to IDC50 male 'header', used on SCSI-1, SCSI-2, Ultra SCSI 'narrow' etc. All internal 50-conductor '8-bit' SCSI uses these cconnectors. Bluetooth usb dongle driver v2.0. CN50 CN50 Male CN50 Female Centronics C50 sometimes referred to as CN50, Cent50 (External connector on many SCSI-1 and some SCSI-2 Controllers) The controller connector and peripherals connectors should be females, and the cables male. DB25 DB25 Male SCSI-1 Used with the older Macs, Zip drives, and many scanners. DB25 Female HD50 HD50 Male (Mini D50 HPDB50 SCSI-2/SCSI-3 external connector). The easy way to tell the difference between an HD50 and an HD68 (unless you want to count those tiny little pins) is to measure them.

SCSI-2 Computer Cables - Molded, Shielded and Compatible with Differential SCSI-2 These differential SCSI-2 cables utilize 25 twisted pair cable and half pitch DB50 connectors, standard DB50 connectors and 50 position Centronics connectors.Half pitch connector housings connect via spring locking latches. 6ft VHDCI 0.8mm 68-pin Male to SCSI-2 HPDB50 Male Cable. This VHDCI (Very High-Density Cable Interconnect) cable features 68-pin 0.8mm male to HPDB 50-pin male connector for connecting SCSI storage devices and other compatible peripherals. It is constructed from twisted pairs for superior signal quality.

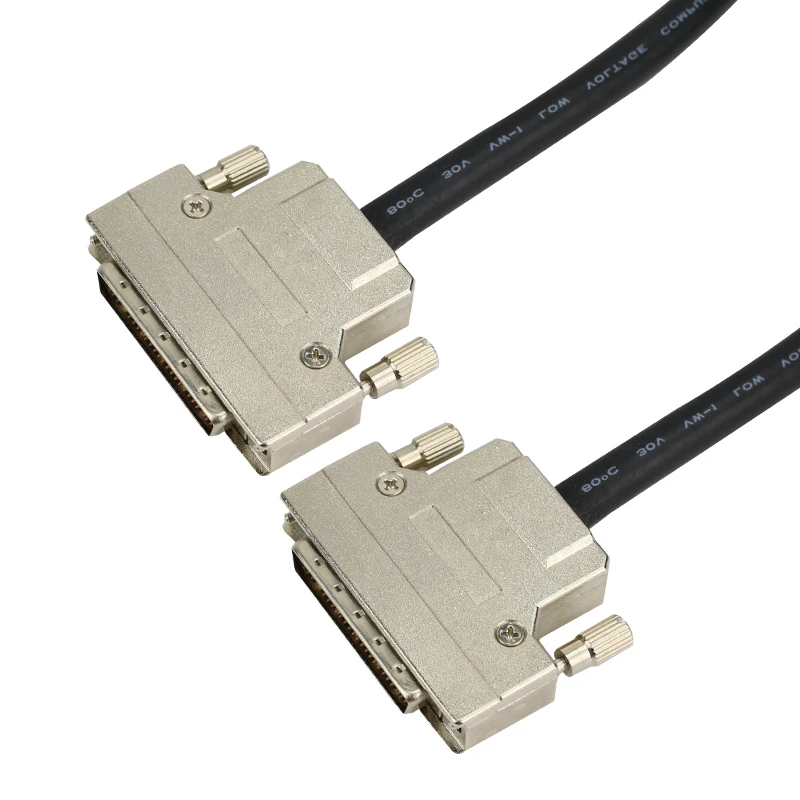

HPDB50 is about 1 3/8” (36mm), and the HPDB68 is about 1 7/8” (47mm) HD50 Female HD68 HD68 Male (MiniD68 HPDB68 Ultra wide SCSI-3/ Ultra2 LVD SCSI/ wide Differential SCSI both internal and external) The internal and external connectors appear to be different, but they are the same basic connector. The easy way to tell the difference between an HD50 and an HD68 (unless you want to count those tiny little pins) is to measure them. HD50 is about 1 3/8” (36mm), and the HD68 is about 1 7/8” (47mm). HD68 Female VHDCI VHDCI male VHDCI 0.8mm HPCN68 male- Sometimes called SCSI-5. Very popular in RAID cards. VHDCI female HDI-30 HDI-30 is for Apple Macintosh PowerBooks. HPCN50 Used in Japan, on several Digital cameras and things.

Scsi 50 Pin Ribbon Cable

HPCN50 pin (rare) DB50 DB50 Male SCSI-1 Usually used on old Sun Sparcstations. DB50 Female DB37 Male DB37 SCSI-1 Female DB37 HDCN60 (Mini Centronics 60 HDCN60 - old IBM RS6000) We don't carry these cables anymore The SCSI Types Bus lengths, devices supported, etc. Much more info on SCSI Cable lengths and 'gotchas' below the chart STA (SCSI Trade Association) -Endorsed Terms & Terminology for SCSI Parallel Interface Technology.

STA Terms (notes-see below) Bus Speed, MBytes/Sec. Bus Width, bits Max. Bus Lengths, Meters (1) Max. Device Support Single- ended LVD HVD SCSI-1 (2) 5 8 6 (3) 25 8 Fast SCSI (2) 10 8 3 (3) 25 8 Fast Wide SCSI 20 16 3 (3) 25 16 Ultra SCSI (2) 20 8 1.5 (3) 25 8 Ultra SCSI (2) 20 8 3 - - 4 Wide Ultra SCSI 40 16 - (3) 25 16 Wide Ultra SCSI 40 16 1.5 - - 8 Wide Ultra SCSI 40 16 3 - - 4 Ultra2 SCSI (2,4) 40 8 (4) 12 25 8 Wide Ultra2 SCSI (4) 80 16 (4) 12 25 16 Ultra3 SCSI or Ultra160 SCSI (6) 160 16 (4) 12 (5) 16 Ultra320 SCSI (6) 320 16 (4) 12 ( Notes: • The listed maximum bus lengths may be exceeded in Point-to-Point and engineered applications. • Use of the word 'Narrow', preceding SCSI, Ultra SCSI, or Ultra2 SCSI is optional.

• LVD was not defined in the original SCSI standards for this speed. If all devices on the bus support LVD, then 12-meters operation is possible at this speed. However, if any device on the bus is singled-ended only, then the entire bus switches to single-ended mode and the distances in the single-ended column apply. • Single-ended is not defined for speeds beyond Ultra. • HVD (Differential) is not defined for speeds beyond Ultra2. • After Ultra2 all new speeds are wide only.

Amazing design free resume templates for mac. Avoid monster redundant and including too many generic sentences that can apply to anyone. You dependence to quickly occupy the hiring managers attention and bring out your top-selling points or unique value proposition.

The Cable Length Rules * (In case you're not confused yet) A short simplified guide to scsi cable lengths. Type of SCSI 'Single-ended' (Regular) SCSI bus length 'Differential' SCSI bus length LVD SCSI bus length (ULTRA2 OR ULTRA160) 5 MHz (SCSI-1) 6 meters 25 meters - 10 MHz (SCSI-2 FAST, Fast / Wide SCSI) 3 meters 25 meters - 20 MHz (Ultra SCSI, Ultra Wide SCSI or 'Fast20') 3 meters (3 devices + host adapter) or 1.5 meters (4 devices + host adapter)* 25 meters - 40 MHz (Ultra2,Ultra160, U320 SCSI or 'Fast40') - - 12 meters * please note: 'Ultra' SCSI cable lengths are severely limited! The maximum cable length is ten feet when four devices ( including the host adapter) or less are on the bus. If five devices are used (four devices and your host adapter), then the maximum bus length is 1.5 meters (five feet!).
